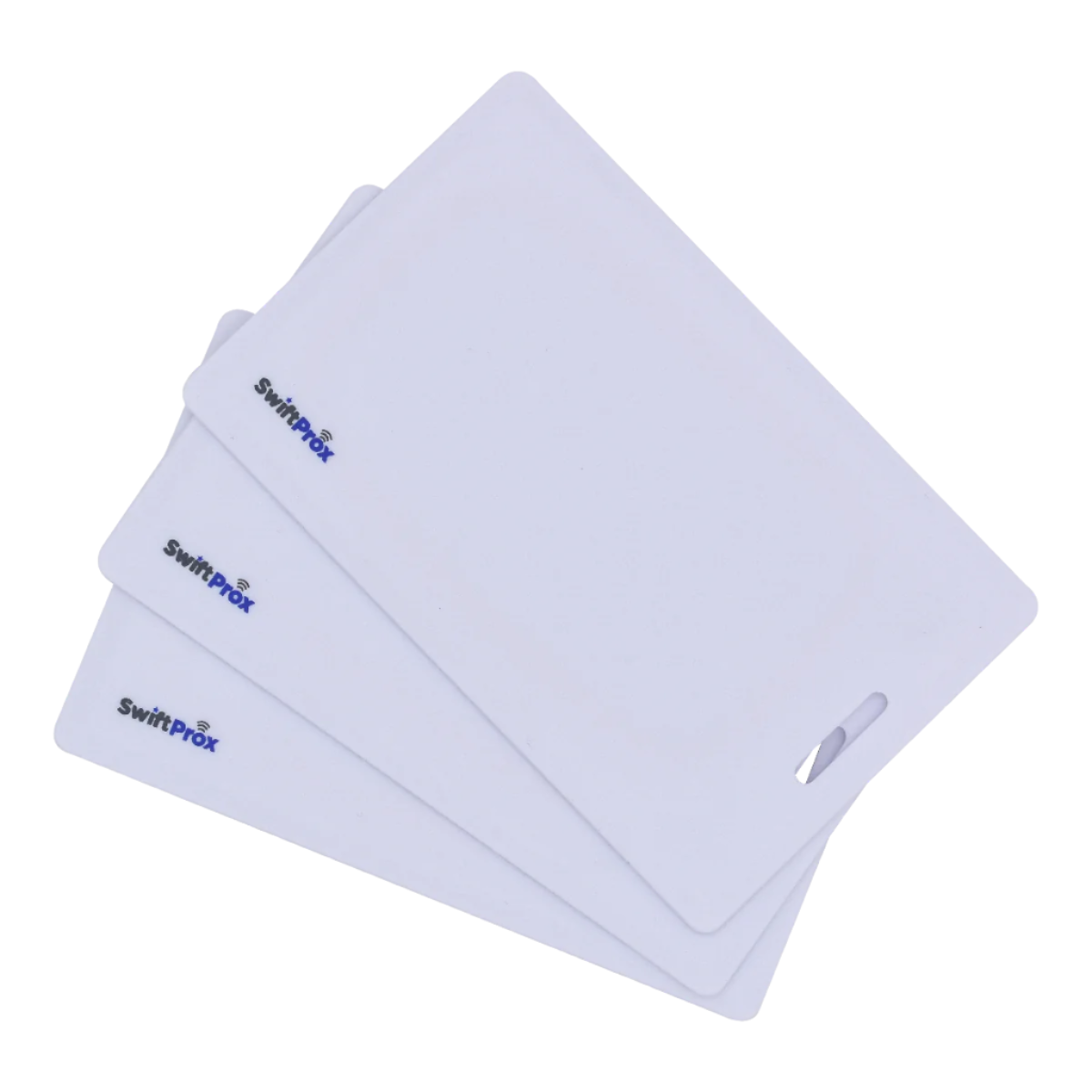

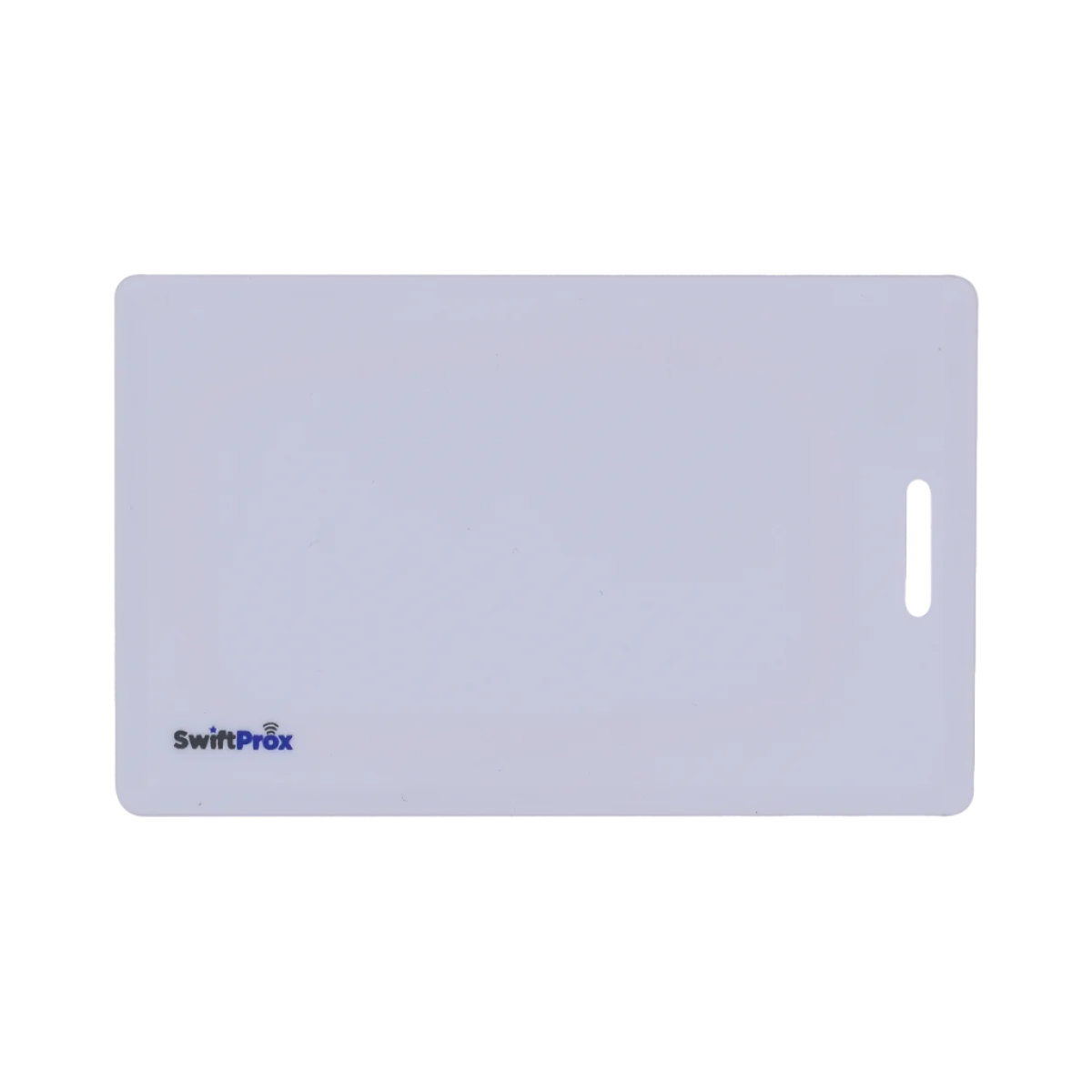

SwiftProx Clamshell Proximity Card (Comparable to HID 1326)
SwiftProx Clamshell Proximity Card (Comparable to HID 1326) - H10301 - 26 Bit / Matching Encoded Number
Couldn't load pickup availability
SwiftProx Clamshell Proximity Card (Comparable to HID 1326)
Description
Description
SwiftProx Clamshell Cards are manufactured using only the finest quality ABS, meaning that strength is maximised and that your investment is protected by improved durability as well as protection against damaging bends and scratches. An encapsulation design aids this also, whilst also offering a consistent and reliable read range which works whether the clamshell card is worn close to the body or on a keyring.
Comparable to HID 1326 technology, SwiftProx Clamshell Cards are best suited for use within access control applications and are compatible with a huge range of 125kHz reader systems. If you are looking to bring industry leading standards into your business for very affordable pricing, SwiftProx Clamshell Cards are the logical choice.
Warranty
For peace of mind all card products come with a full lifetime warranty to guard against any defects in manufacturing. This applies to both HID and SwiftProx brands.
ID Cards Direct also provide a full range of ID card accessories such as ID card clips, lanyards, ID card holders or badge reels.
Need help selecting your Configurable Options?
Below you will find information that will help you select the right configurable options. If you need any further help, chat to us today.
Card Format Options:
All cards will have a pre-defined format which you will need to enter in the field ' Card Format Options' to the right. If you are unsure please check the label on your last carton of cards where the format is normally listed.
Site/Facility Code:
All cards will normally contain a facility code that you will need to enter in the appropriate field labelled 'Site/Facility Code'. If you are unsure please check the label on your last carton of cards where this will be listed.
Encoded Start Number:
Enter the starting number for the programming and printing of your cards/credentials (where applicable)
Checking Your Order
It is your responsibility to ensure that all the card information is correct before checking out. Each order is custom encoded and printed to your needs so we are unable to re-use the cards if you send them back to us.
Further Information
Should you need more information or help with configuration, please contact us.
Configurable Options
SwiftProx cards are programmed and printed to order, based on your specific requirements.
In the case of new cards for an existing system, Format & Site/Facility Code should match the previous batch, with only the start number advancing to avoid duplication/overlap.
Format Ranges
Each format accepts specific ranges for both site/facility codes and numbering:
|
H10301 - 26 Bit Site Code: 0 - 255 Number Range: 0-65535 |
H10302 - 37 Bit Site Code: Not Used Number Range: 0-34359738369 |
|
H10304 - 37 Bit Site Code: 0 - 65535 Number Range: 0-524287 |
H10320 - Clock & Data Site Code: Not Used Number Range: 0-999999999 |
Key features
- 125kHz
- NOT Printable with ID Card Printers
- Identical in function to HID Prox
Part Number
- SwiftProx 1326
Dimensions
- CR80 / 86 x 54mm / 3.39" x 2.13"
- Approximate thickness: 1900 Micron / 75 Mil / 0.075"
Pack Size
- MOQ: 10 Cards
- Increments: 1 Card
Checking Your Order
It is your responsibility to ensure that all the card information is correct before checking out. Each order is custom encoded and printed to your needs so are non-returnable.
If you have any questions, or would like further details, please get in touch.
