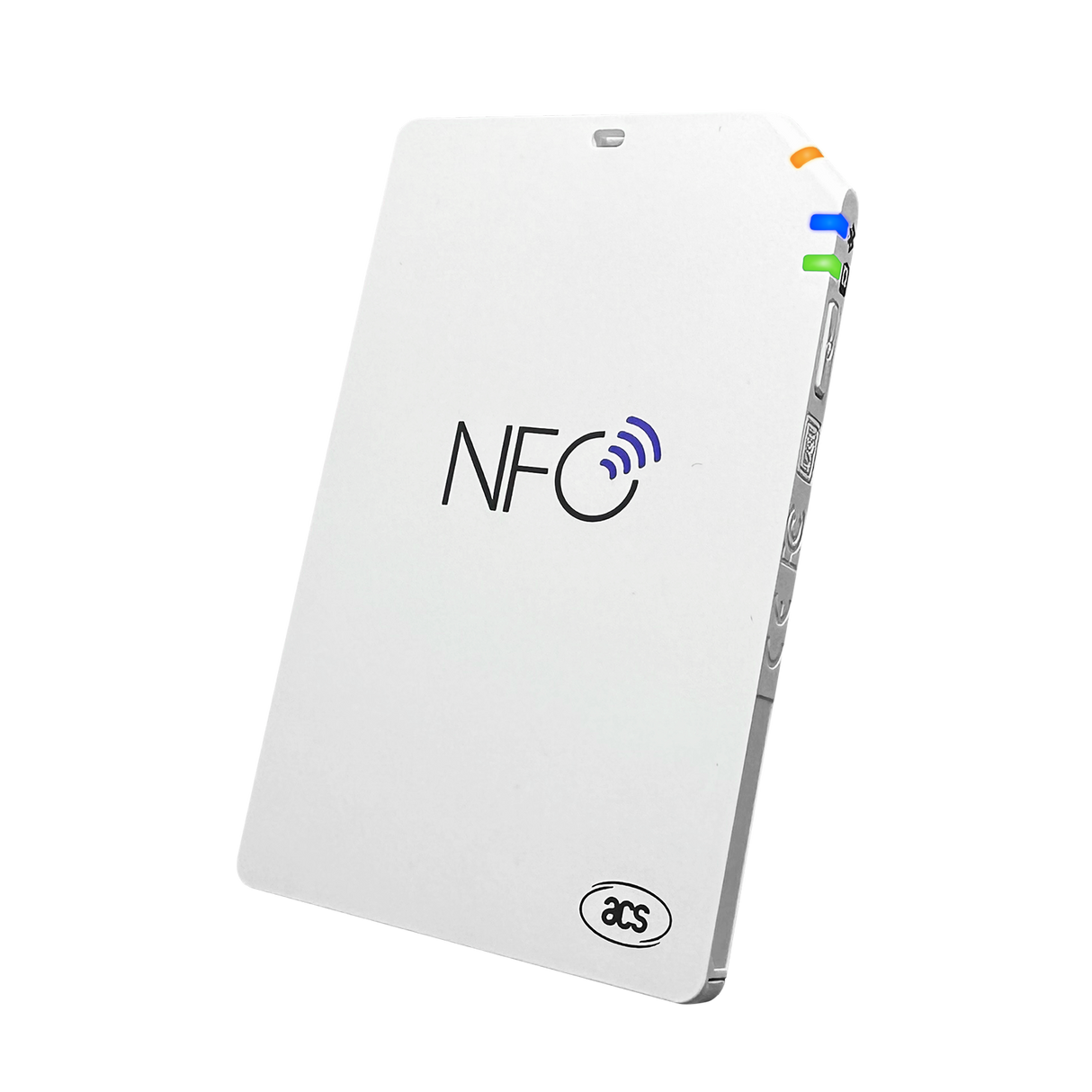

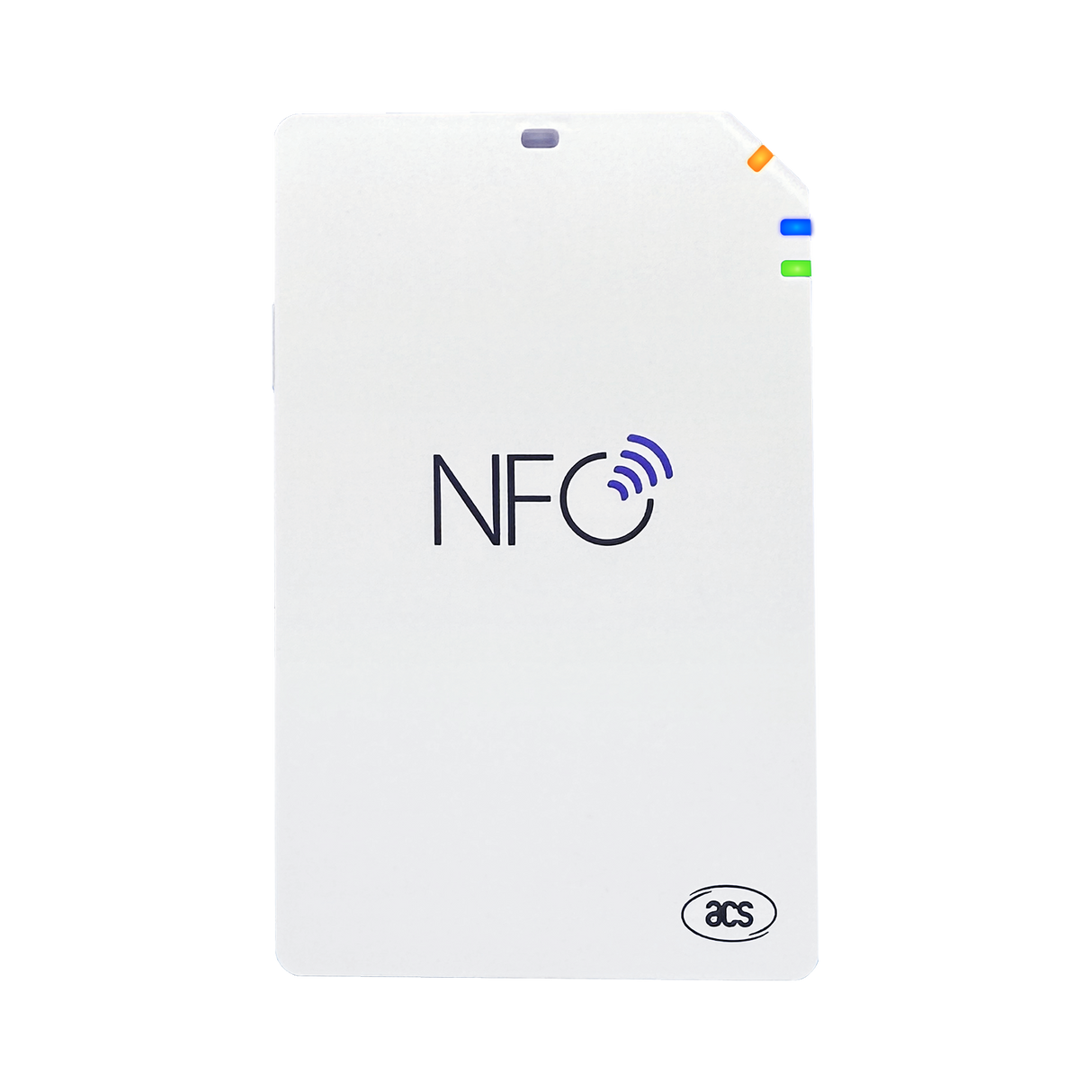

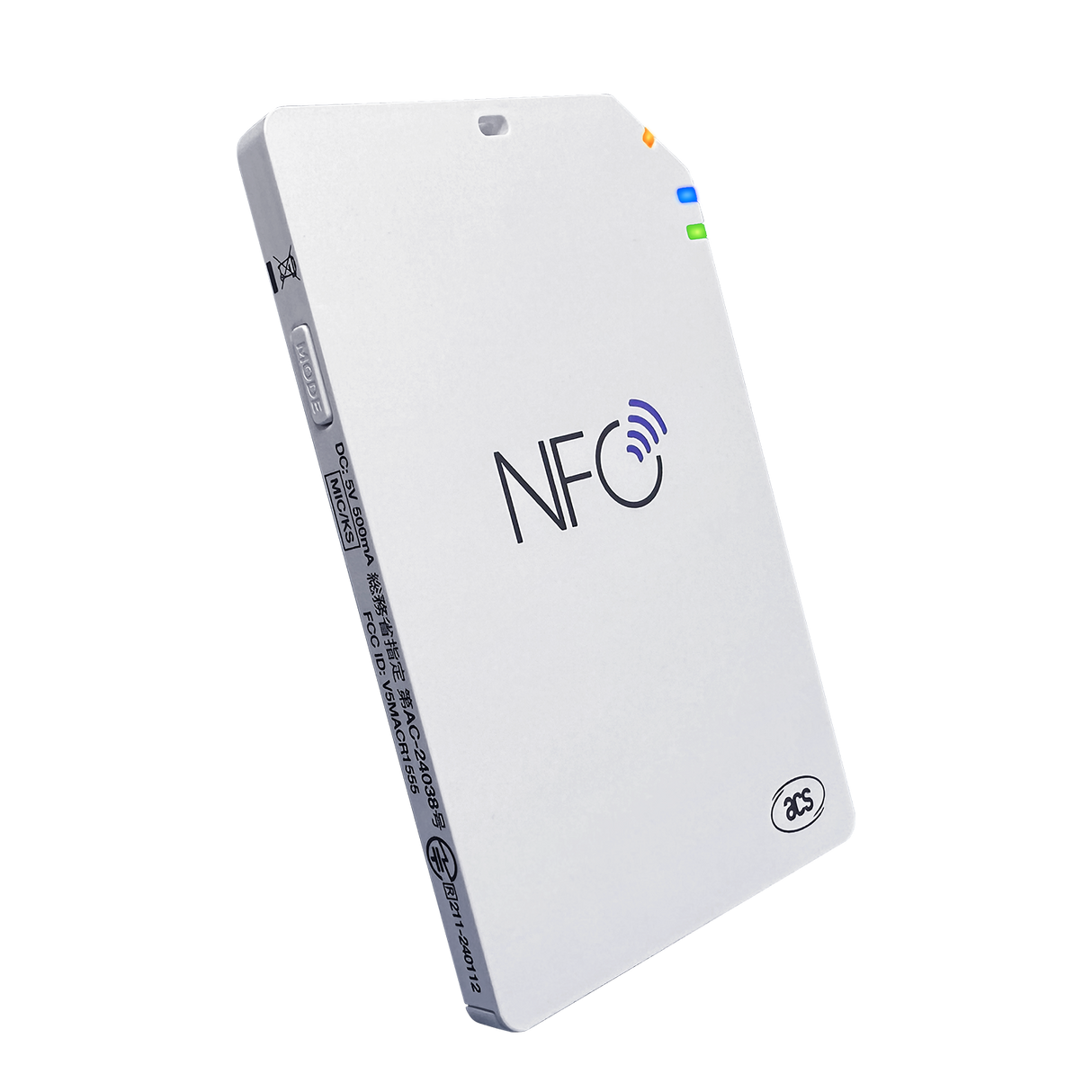

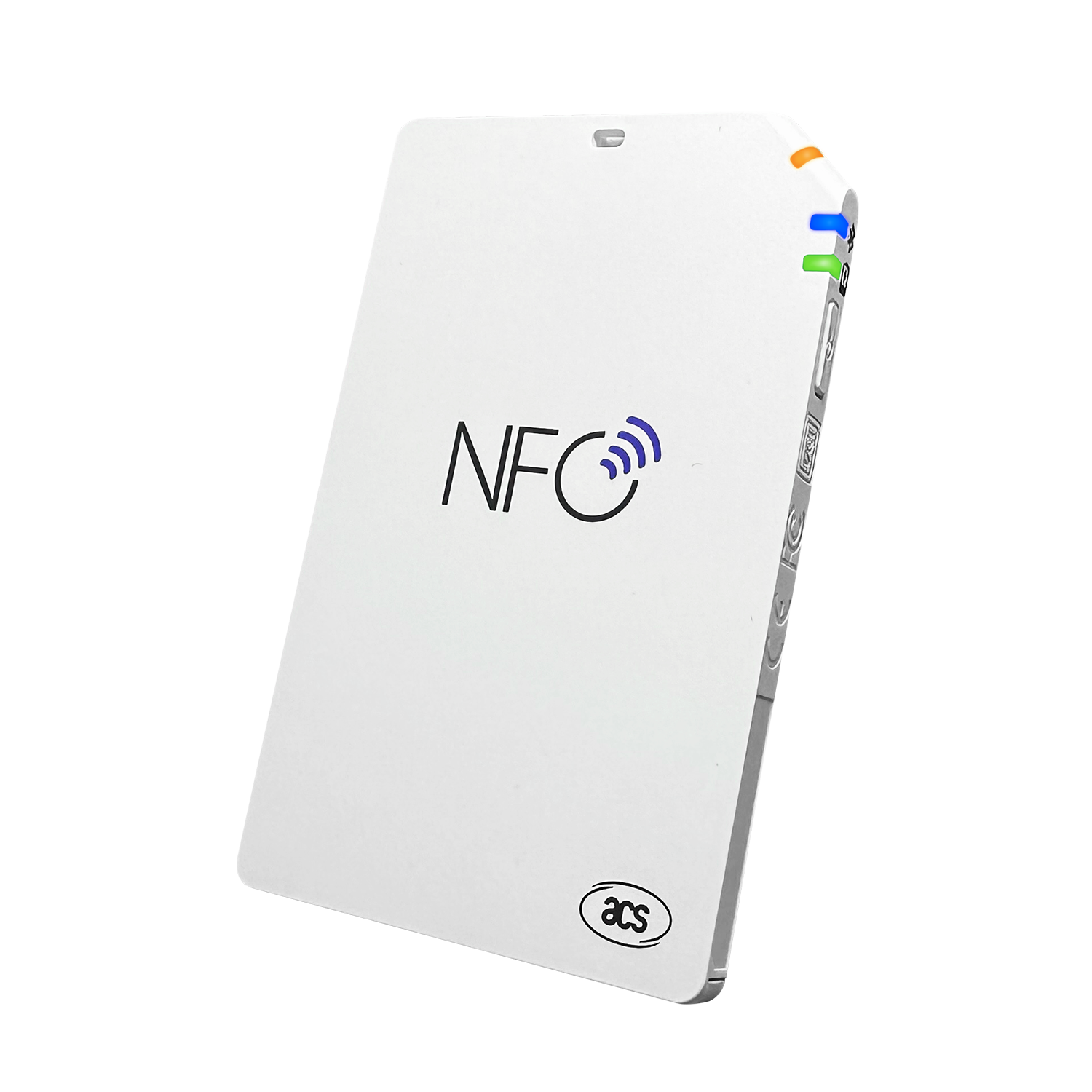

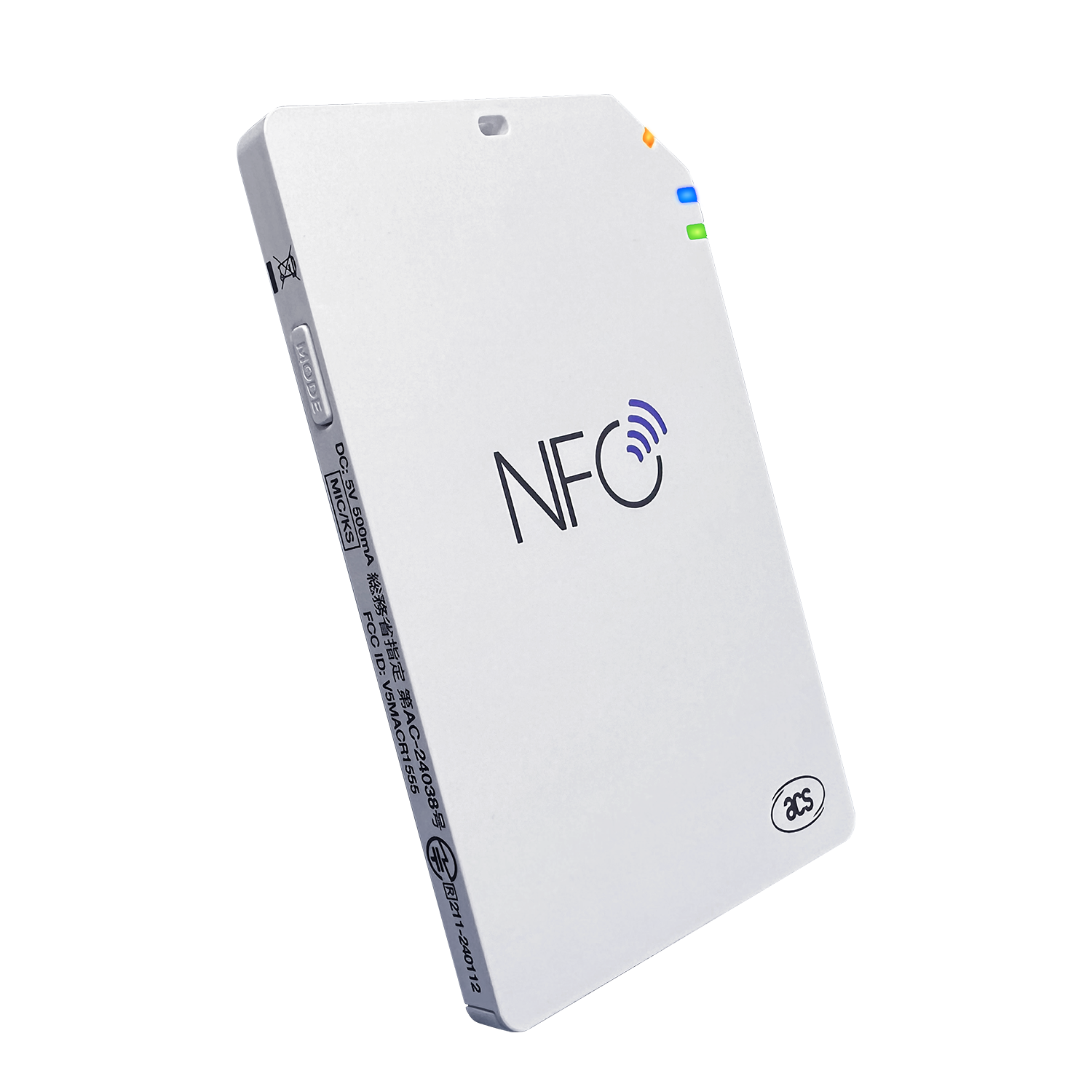

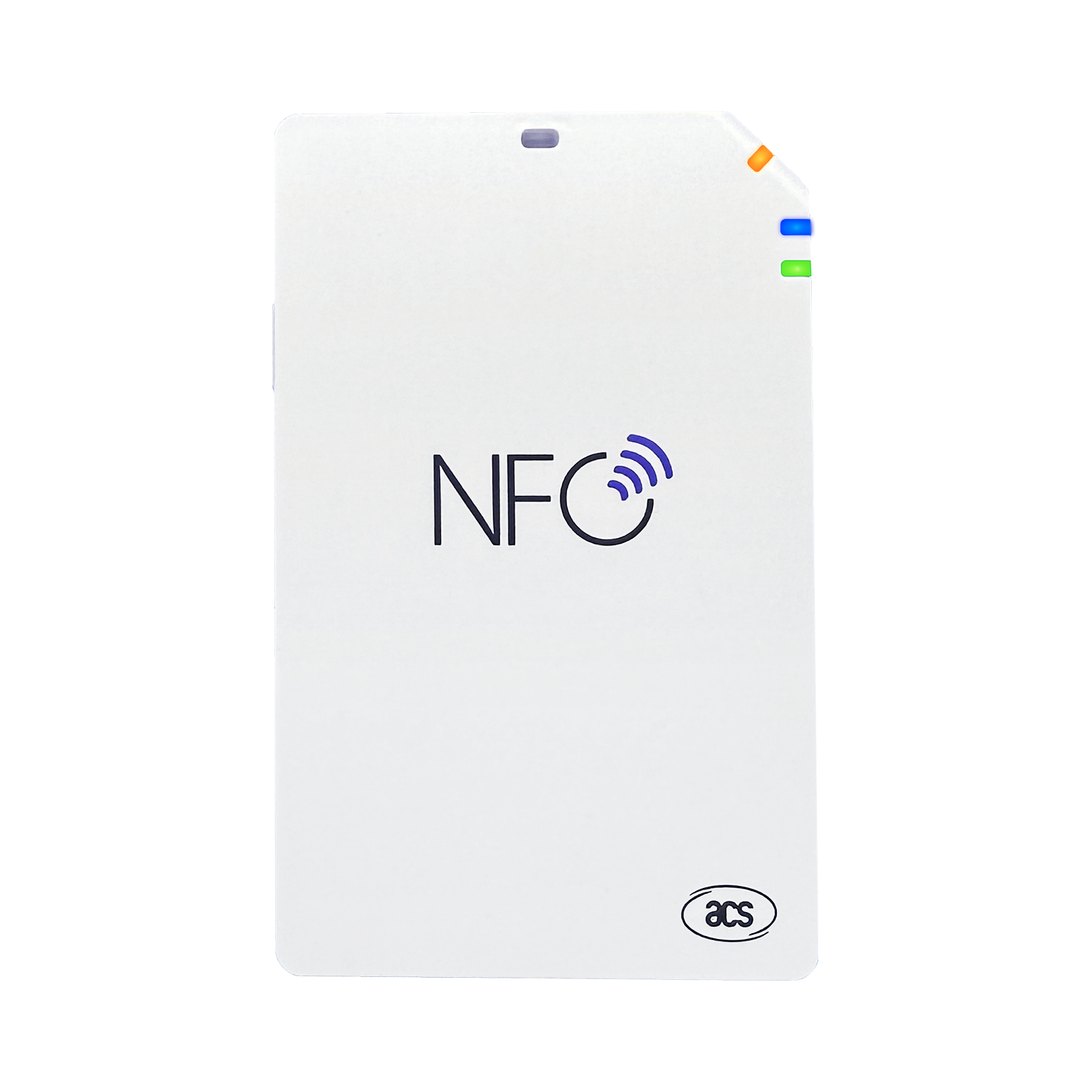

ACS ACR1555U Secure Bluetooth NFC Reader

The ACS ACR1555U is a secure Bluetooth NFC reader, supporting various contactless standards including ISO 14443 & ISO 18092, which cover a wide range of options including Mifare Classic, Ultralight & NTAG.

The ACR1555U features Bluetooth 5.2 support for mobile device pairing and full speed USB connectivity for PC usage. Supporting high speed read/write functions, card emulation, HID keyboard emulation, AES encryption and built-in Li-ion battery, the ACR1555U is a secure, portable and efficient option for a variety of applications including mobile banking and payments, access control, public key infrastructure and more.

Key Features

• Supports 13.56Mhz
• Bluetooth 5.2
• Bluetooth AES-128 Encryption
• Read & Write functions
• Read/Write ISO 14443 - Up to 848kbps
• Detachable USB C → USB A Cable
• Bluetooth HID Keyboard Emulation Mode
• 3.7V 450mAh Li-ion rechargeable battery

Part Number

• ACR1555U

Certification & Compliance

• USB CCID
• PC/SC
• J-LIS
• Microsoft WHQL
• BQB

Supported Operating Systems

• Windows
• Linux
• Mac OS
• iOS
• iPadOS
• Android


Dimensions

• 93 x 58 x 6mm / 3.7" x 2.29" x 0.24"

Supported Chip Types Include:

• ISO 14443
• ISO 15693
• ISO 18092
• NFC
• Mifare
• FeliCa

If you have any questions, or would like further details, please get in touch.
