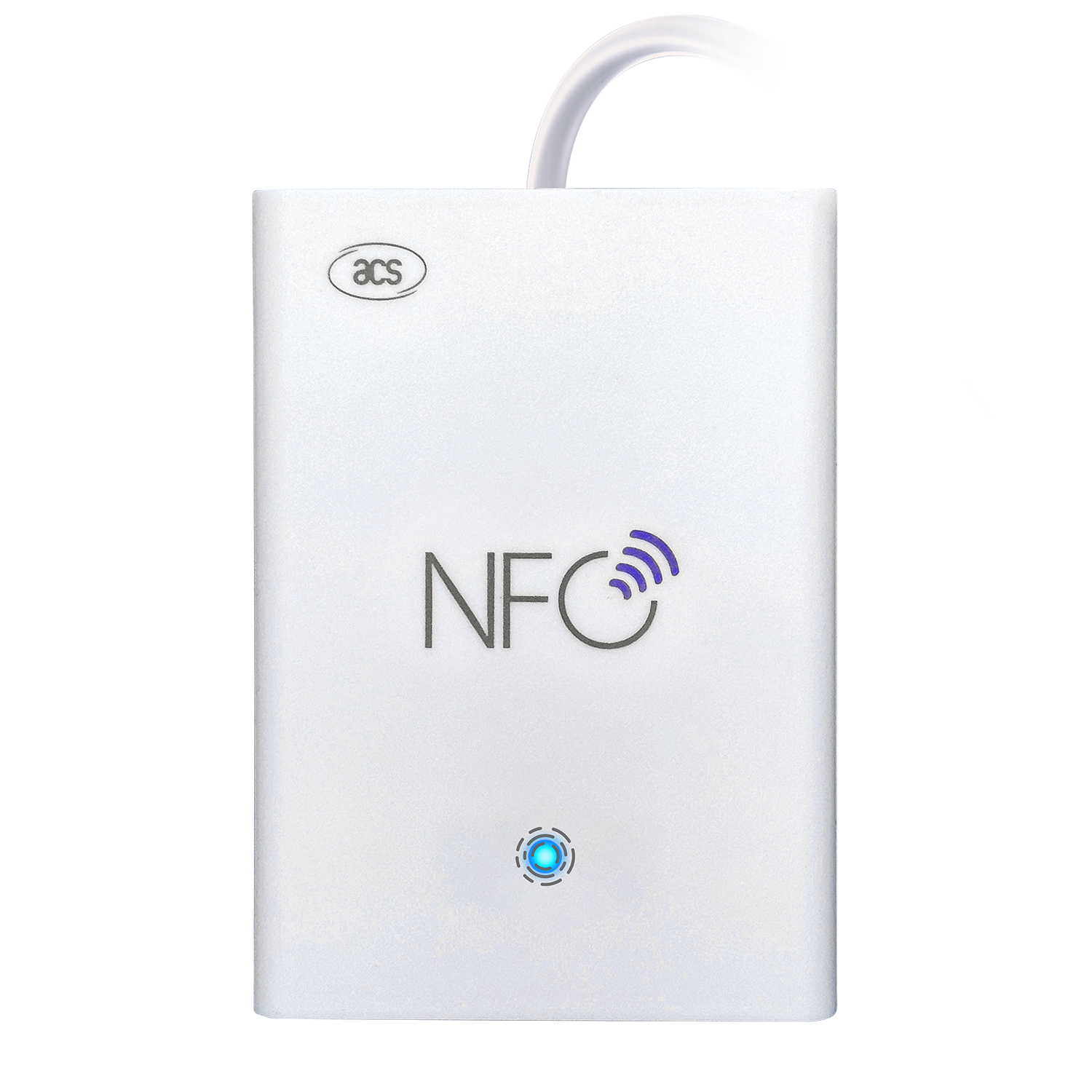

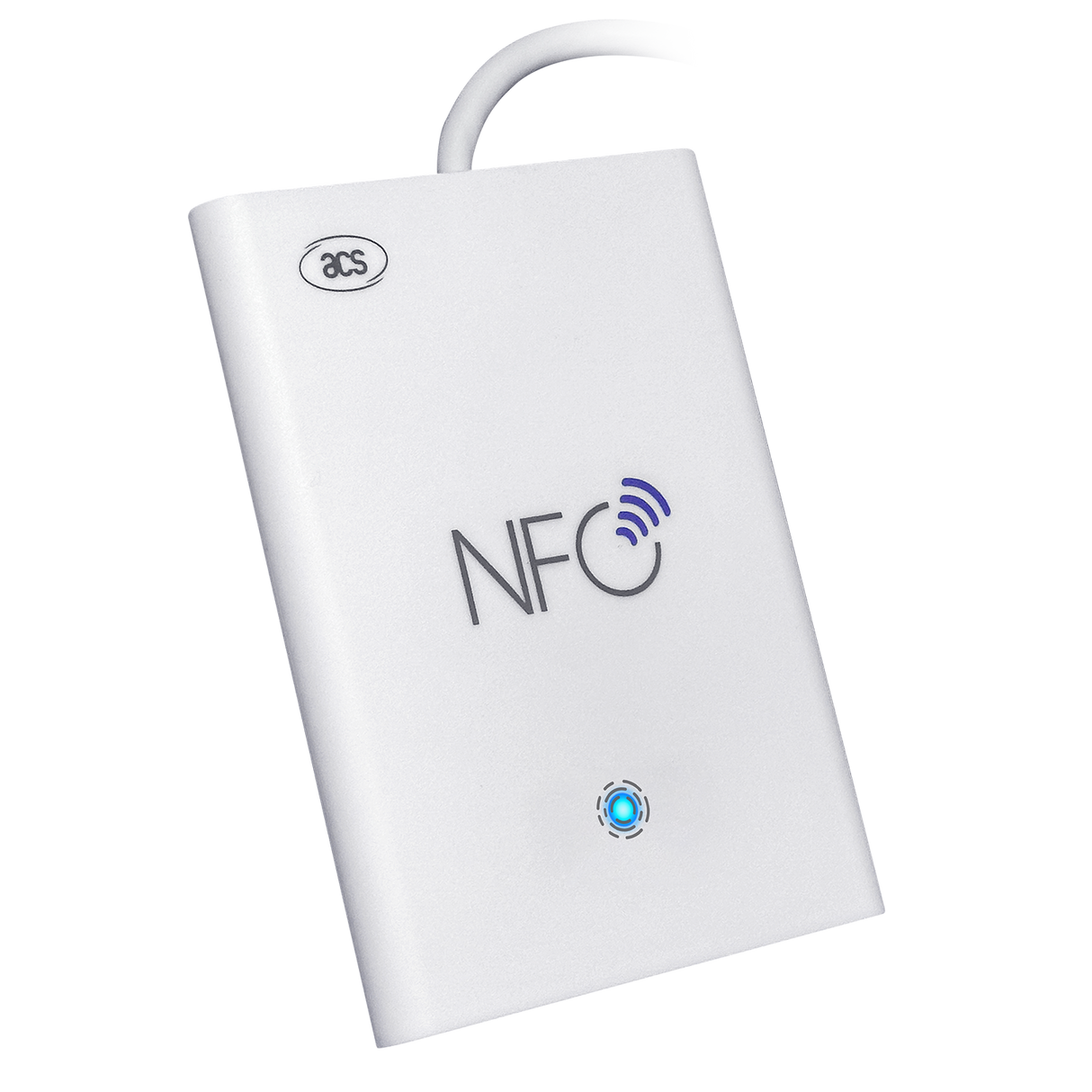

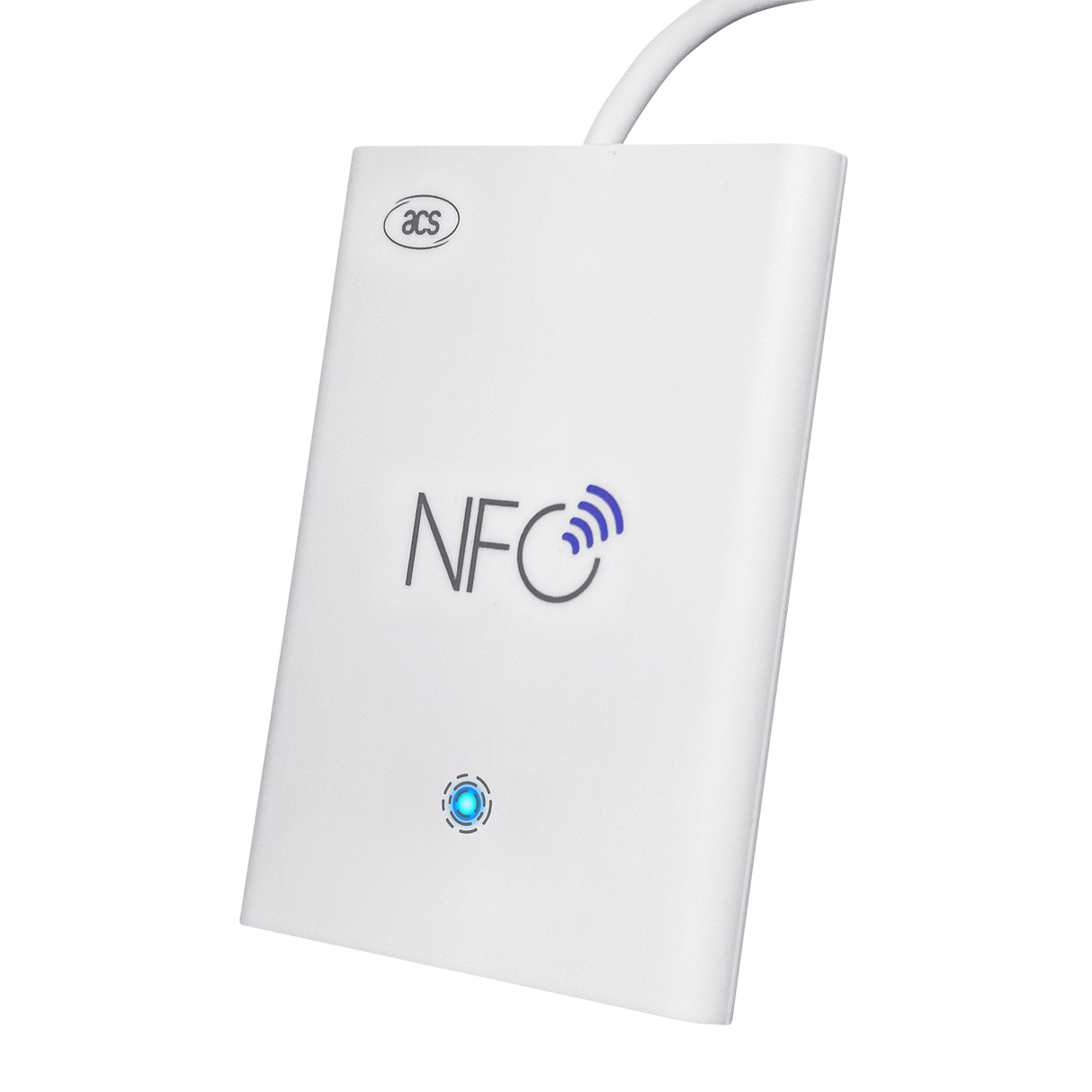

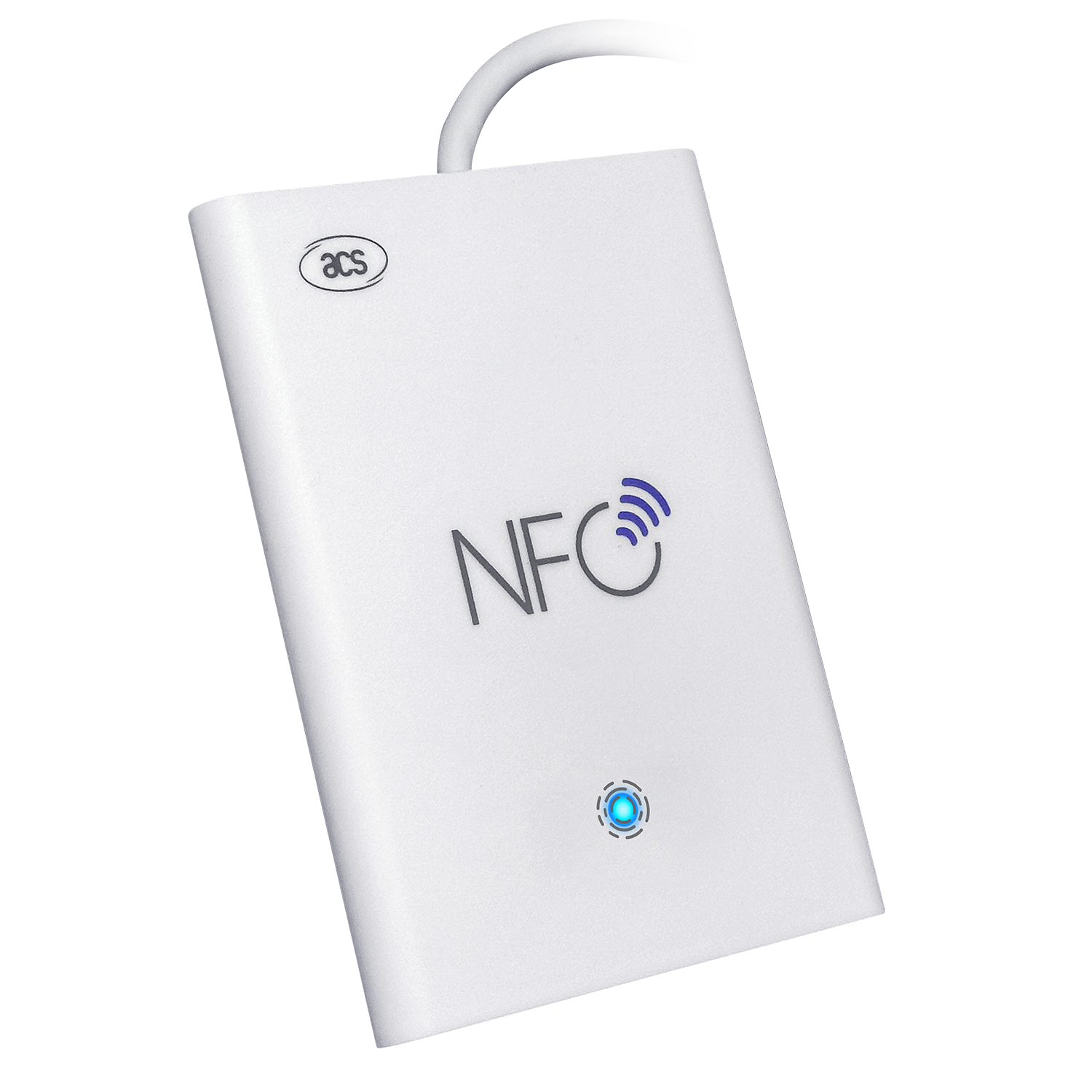

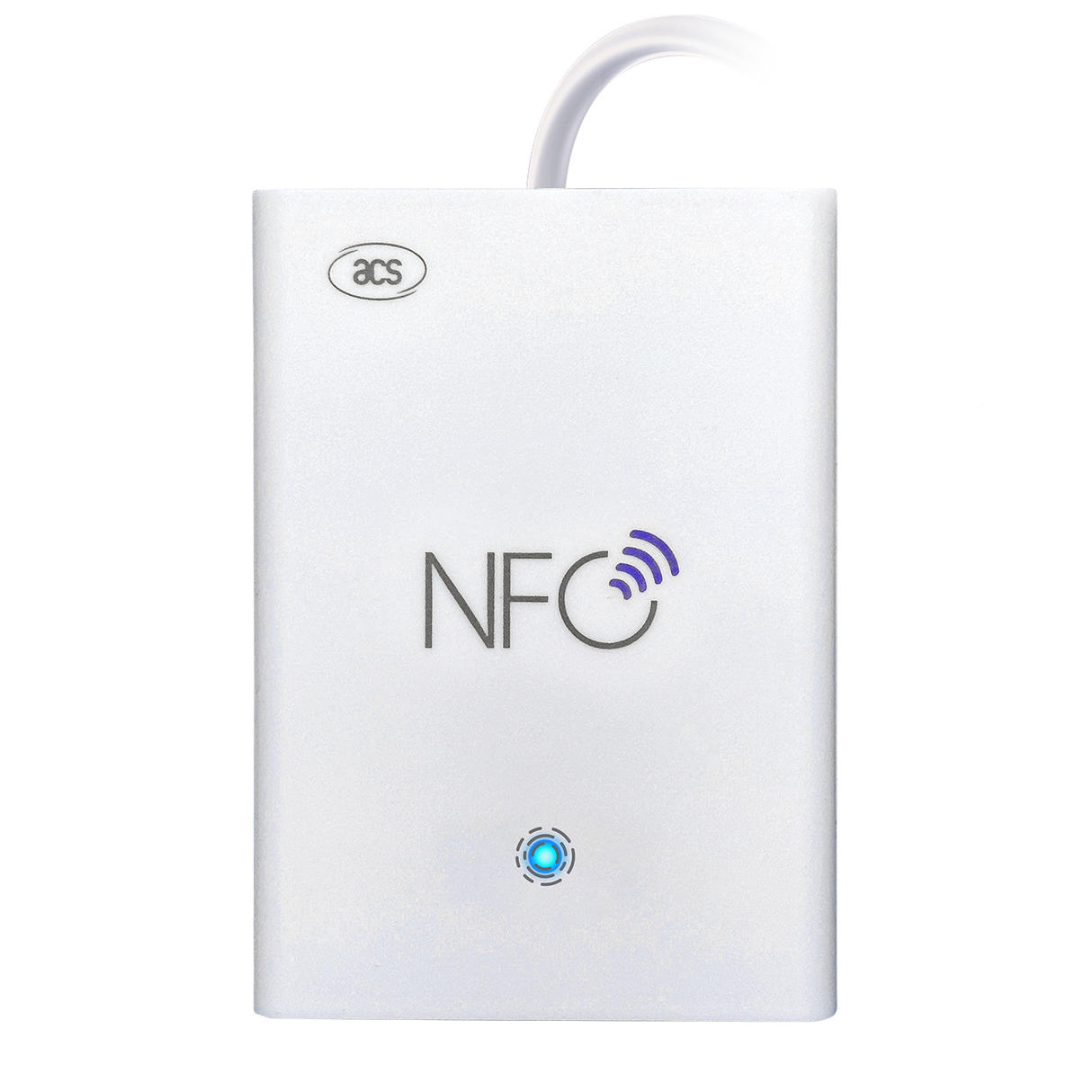

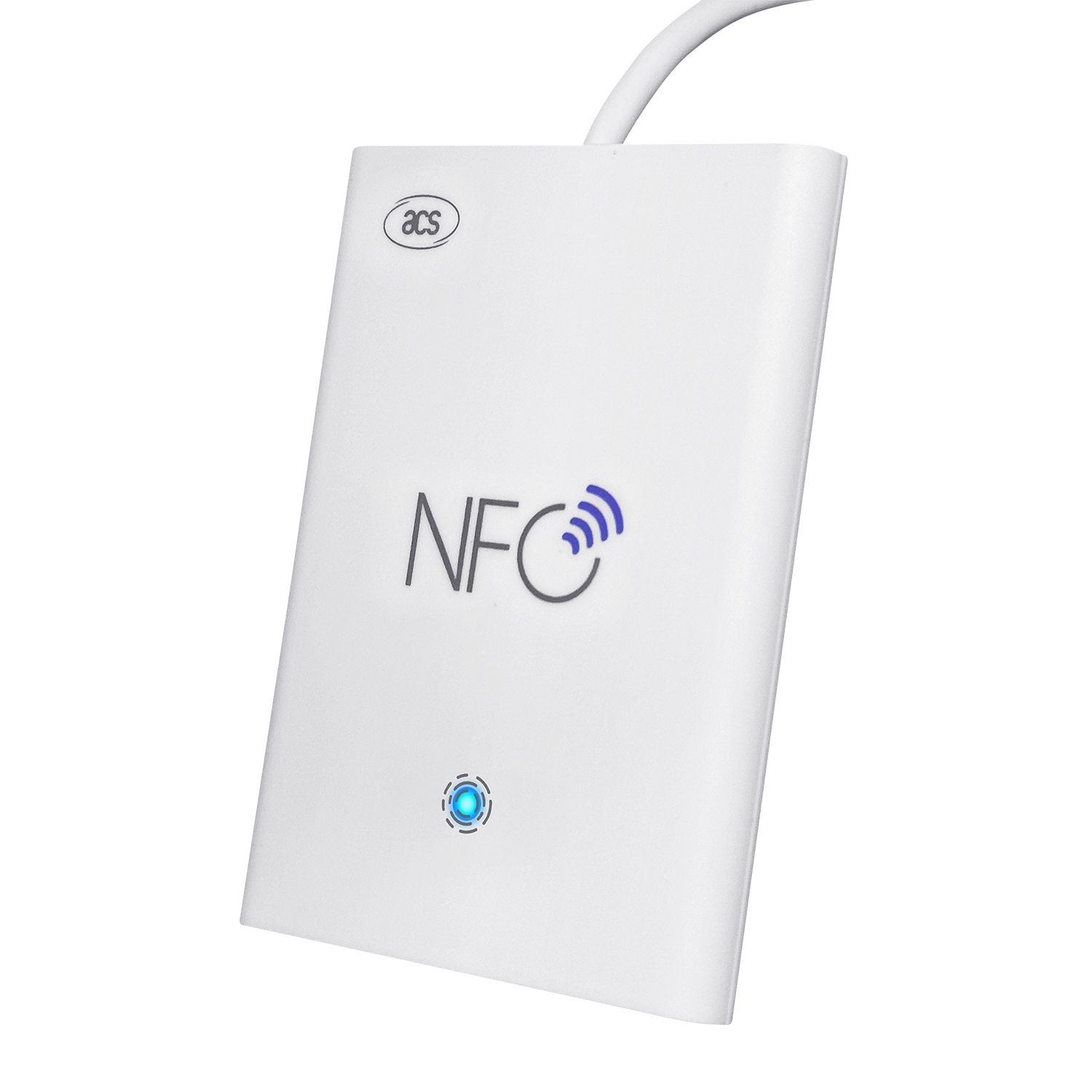

ACS ACR1552U AquaGuard IP67 NFC Reader

The ACS AquaGuard is an IP67 rated variant of the ACR1552U, offer the same features and functions, now with protection against dust & moisture.

Operating at 13.56Mhz, the ACS AquaGuard supports a range of options compliant to ISO 14443, ISO 15693 and ISO 18092, which covers multiple RFID and NFC technologies.

The ACS AquaGuard supports three NFC modes; reader/writer, card emulation and keyboard emulation, making it a versatile option for a range of applications, while the IP67 protection allows this functionality to be used is a wider range of environments.

Key Features

• Supports 13.56Mhz
• IP67 rated for dust & water resistance
• Read & Write functions
• Read/Write ISO 14443 - Up to 848kbps
• Read/Write ISO 15693 - Up to 26kbps
• Card & Keyboard Emulation Modes

Part Number

• ACR1552U-A2

Certification & Compliance

• USB CCID
• PC/SC
• J-LIS
• Microsoft WHQL
• IP67

Supported Operating Systems

• Windows
• Linux
• Mac OS
• Android

Dimensions

• 85 x 60 x 9mm / 3.3" x 2.36" x 0.35"

Supported Chip Types Include:

• ISO 14443
• ISO 15693
• ISO 18092
• NFC
• Mifare
• FeliCa
• SRI/SRIX
• CTS
• Innovatron
• Picopass
• Topaz Card
