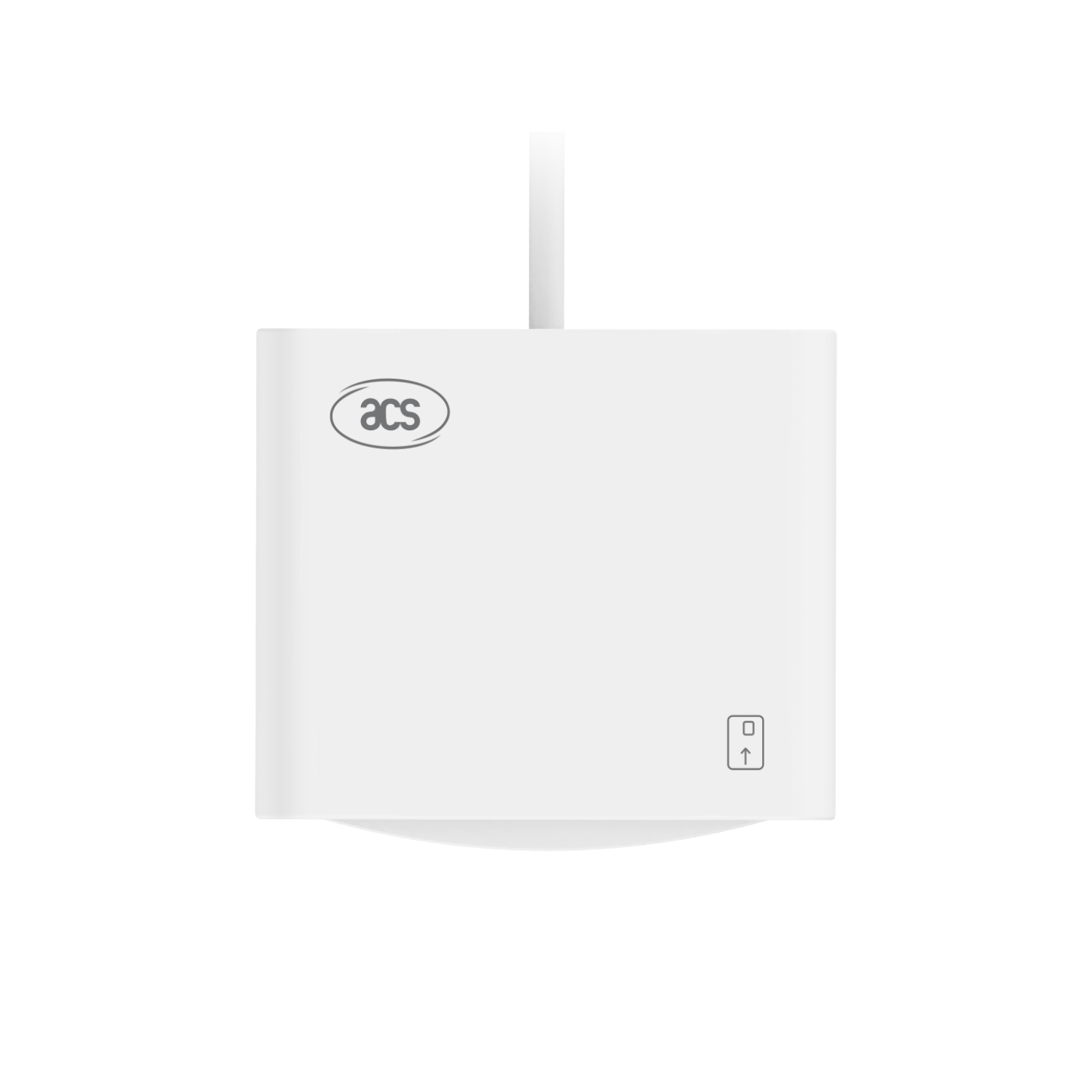

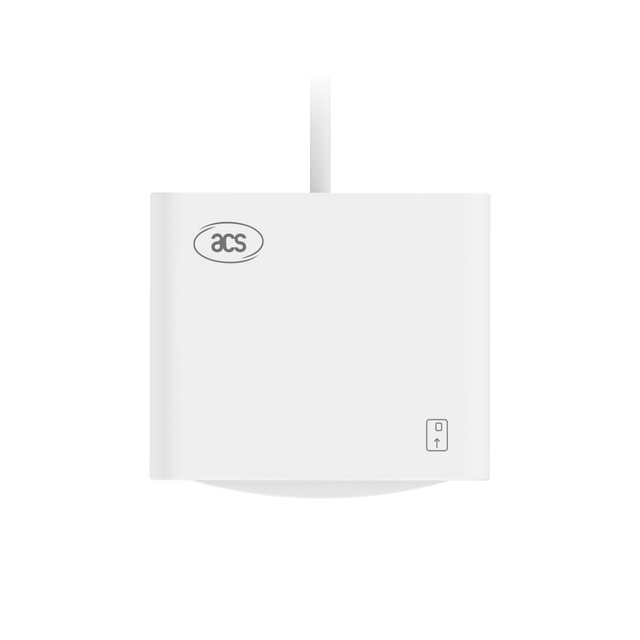

ACS ACR40U Contact Smart Card Reader

The ACS ACR40U is a compact reader for contact cards, offering support for various cards compliant to ISO 7816 Class A, B & C, microprocessor cards and a range of other formats (details below)

The ACR40U supports both firmware upgrades and on device user data storage, as well as compliance to CCID, PC/SC and WHQL standards, offering flexibility for a range of applications including access control, loyalty, network security and more.

Key Features

• Supports various types of Contact cards
• Read & Write functions
• USB Type A (ACR40U-A1) or USB Type C (ACR40U-AF)


Part Number

• ACR40U

Certification & Compliance

• USB CCID
• PC/SC
• EMV Level 1 (Contact)
• PBOC Level 1 (Contact)
• TAA
• J-LIS
• Microsoft WHQL

Supported Operating Systems

• Windows
• Linux
• Mac OS
• iOS
• iPadOS
• Android
• Solaris

Dimensions

• 55 x 65 x 9mm / 2.17" x 2.56" x 0.35"


Supported Chip Types Include:

• ISO7816 Contact Card
• Microprocessor Cards - (T=0, T=1)
• Memory Card
• MyKad Card
• CAC
• J-LIS
• SIPRNET Smart Card

If you have any questions, or would like further details, please get in touch.
